| Monobloc |  |
||
| Line-up | R290 Monobloc | ||
| 1Ø : 6 / 9 / 12 / 16kW 3Ø : 16kW |
|||
| Application |  |
||
| Energy Label |  |
||
 |
|||
| Operation Range (heating) | Outdoor Air | -25 ~ 45°C | |
| Leaving Water | 10 ~ 75°C | ||
| Customer Needs | Designer & Installer | 1. Don't want refrigerant piping work 2. Using existing facilities for conventional boiler 3. Saving installation and commissioning time 4. No indoor unit | |
| End-User | 1. Low operation cost 2. Control integration between boiler and heat pump 3. Reliable operation and long lifetime 4. Remote control by smartphone 5. Easy and intuitive controls 6. Quiet operation | ||
| - Don't want to install refrigerant piping indoors | |||

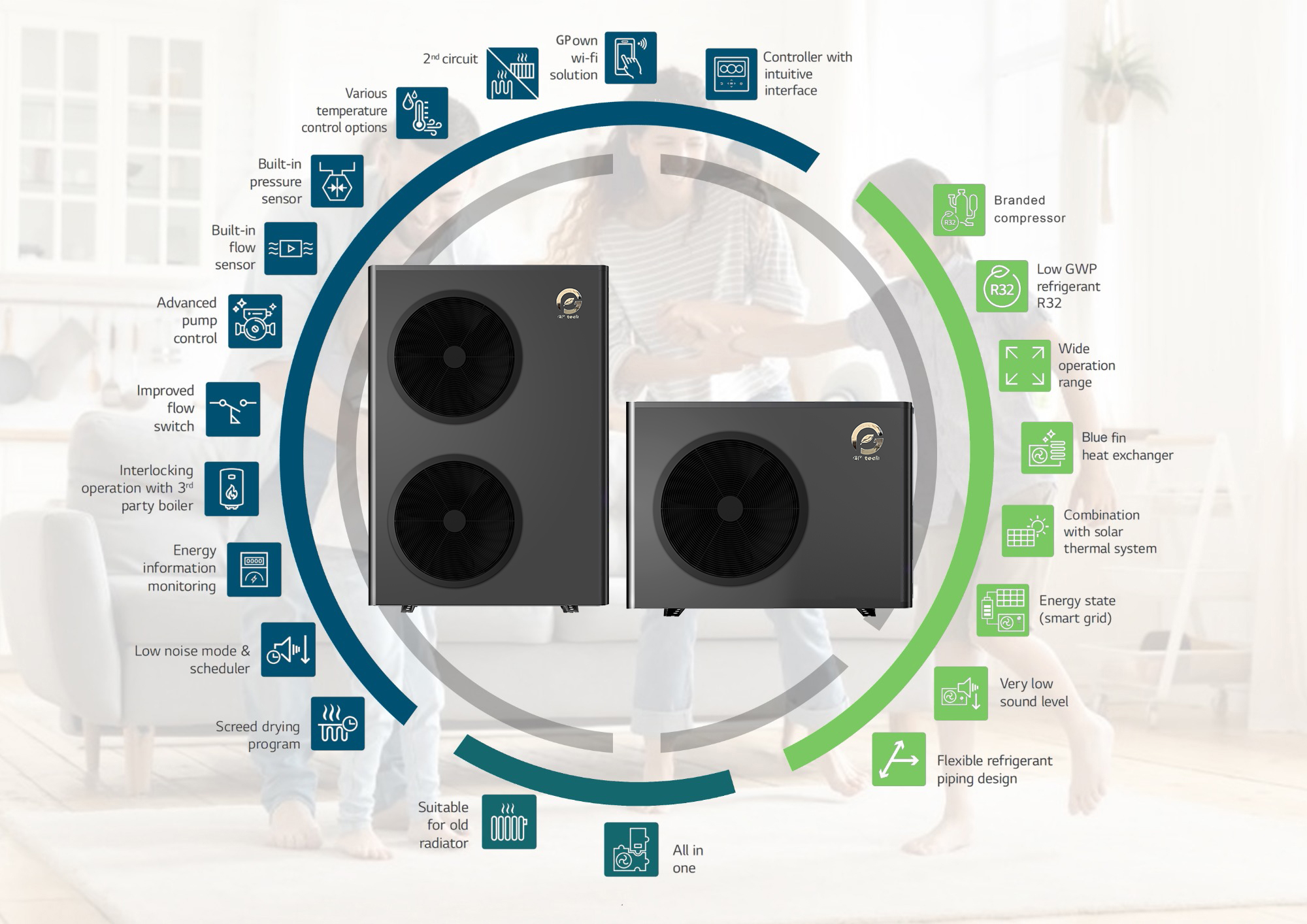

| Approach | 1. High energy efficiency 2. Wi-Fi control solution 3. Interlocking operation with 3rd party boiler 4. High corrosion resistance heat exchanger 5. Low noise mode operation with schedule setting | ||
| - All in one concept (no refrigerant piping work) |
|||
| Benefit | 1. Multiple solution (heating, cooling and DHW supply) 2. Hybrid operation with existing facilities 3. Energy saving by utilizing renewable 4. Quick & easy installation and commissioning 5. Economic support by incentive program energy and high efficient equipment | ||
| - Simple replacement of existing boiler while maintaining the existing heating system - Saving mechanical room space |
|||
| Model： | Master plus 60 | Master plus 90 | Master plus 120 | Master plus 160 | Master plus 120-TRI | Master plus 160-TRI | ||
| Heating Capacity Range | kW | 1.5-7 | 2-10 | 3-13 | 4-18 | 3-13 | 4-18 | |
| Heating (A7/6℃,W30/35℃) | Heating Capacity | kW | 6.2 | 9.2 | 12.1 | 16.2 | 12.1 | 16.2 |
| Power Input | kW | 1.36 | 2.02 | 2.67 | 3.58 | 2.66 | 3.56 | |
| Current | A | 5.91 | 8.83 | 11.43 | 15.26 | 4.41 | 5.89 | |
| COP | W/W | 4.56 | 4.55 | 4.53 | 4.52 | 4.55 | 4.55 | |
| Heating (A7/6℃,W47/55℃) | Heating Capacity | kW | 6.1 | 9.10 | 12.01 | 16.10 | 12.10 | 16.10 |
| Power Input | kW | 2.07 | 3.06 | 4.15 | 5.56 | 4.05 | 5.43 | |
| COP | W/W | 2.95 | 2.97 | 2.89 | 2.90 | 2.99 | 2.97 | |
| Cooling (A35/24℃,W23/18℃) | Cooling Capacity | kW | 6.3 | 9.02 | 11.30 | 15.10 | 11.30 | 15.20 |
| Power Input | kW | 1.62 | 2.33 | 2.95 | 3.96 | 2.91 | 3.98 | |
| EER | W/W | 3.89 | 3.87 | 3.83 | 3.81 | 3.88 | 3.82 | |
| Rated water flow | m3/h | 1.1 | 1.6 | 2.08 | 2.8 | 2.08 | 2.8 | |
| Rated voltage /Frequency | V/Hz | 220~240/50 | 220~240/50 | 220~240/50 | 220~240/50 | 380~415/50 | 380~415/50 | |
| Maximum input power | kW | 2.20 | 3.50 | 4.70 | 6.60 | 4.70 | 6.50 | |
| Maximum input current | A | 12.0 | 15.0 | 20.0 | 28.0 | 8.0 | 11.0 | |
| Brand/Type of Compressor | / | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | |
| Refrigerant | / | R290 | R290 | R290 | R290 | R290 | R290 | |
| Air flow | m3/h | 3500 | 4000 | 4500 | 8000 | 4500 | 8000 | |
| Brand of Water pump | WILO or SHIMGE | WILO or SHIMGE | WILO or SHIMGE | WILO or SHIMGE | WILO or SHIMGE | WILO or SHIMGE | ||
| Water pump Model | Para 15-130/7 | Para 15-130/7 | Para 25-130/9 | Para 25-130/9 | Para 25-130/9 | Para 25-130/9 | ||
| Defrost | / | 4 way valve | 4 way valve | 4 way valve | 4 way valve | 4 way valve | 4 way valve | |
| Waterproof grade | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
| Noise pressure ( at 1m) | dB(A) | 45 | 46 | 47 | 51 | 47 | 51 | |
| Max water outlet temperature | °C | 75 | 75 | 75 | 75 | 75 | 75 | |
| Min/Max outdoor air (heating mode ) | °C | -25/45 | -25/45 | -25/45 | -25/45 | -25/45 | -25/45 | |
| Min/Max outdoor air (cooling mode ) | °C | 15/45 | 15/45 | 15/45 | 15/45 | 15/45 | 15/45 | |
| Net Dimensions ( L/W/H ) | mm | 976/450/688 | 1106/450/835 | 1106/450/835 | 1106/450/1603 | 1106/450/835 | 1106/450/1603 | |
| Package Dimensions ( L/W/H ) | mm | 1100/455/780 | 1150/455/913 | 1150/455/913 | 1150/455/1671 | 1150/455/913 | 1150/455/1671 | |
